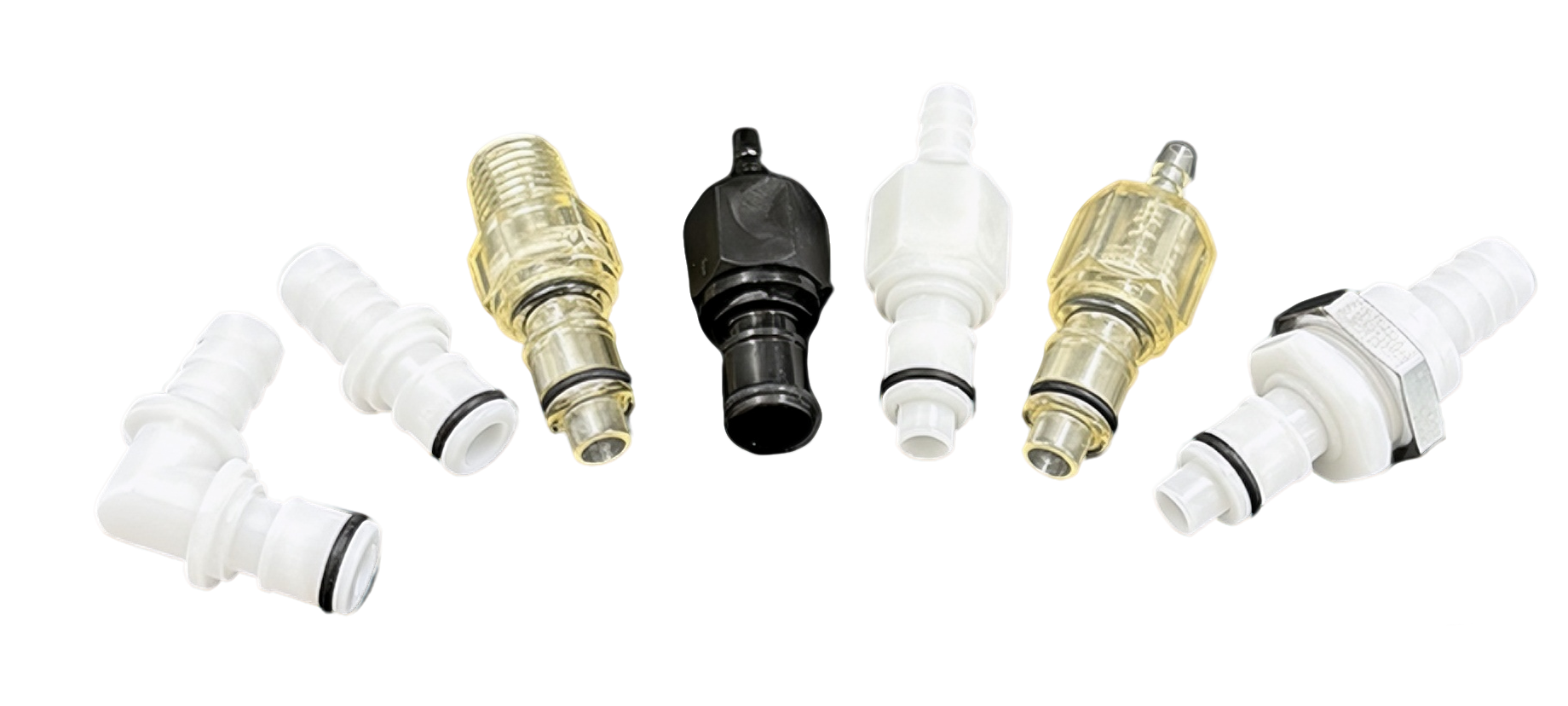

QS series are mature and widely‑used quick‑disconnect connectors. Plastic push‑buttons lock male and female ends. Buttons can be custom‑colored for workflow identification. It complies with European RoHS, REACH regulations and holds CE certification. Standard POM material features high rigidity and high strength, maintaining stable performance after 100,000 connect‑disconnect cycles. Custom body materials including PP, POK, PSU and PPSU are available.

Specifications:

Pressure: Vacuum to 120psi (0.8Mpa)

Temperature: ‑40℃ ~ 100℃

 Materials:

Body & Valve Core: POM

Push‑button: POM

Spring: 316 Stainless Steel

Seals: EPDM

Inner Diameter: 1/16" ~ 3/8" ID (1.6mm ~ 9.5mm ID)

Color: White as standard; other colors available upon custom request.

Customizable body materials: PP, POK, PSU, PPSU

Customizable seal materials: FKM, NBR, SIL, AFLAS, FFKM
