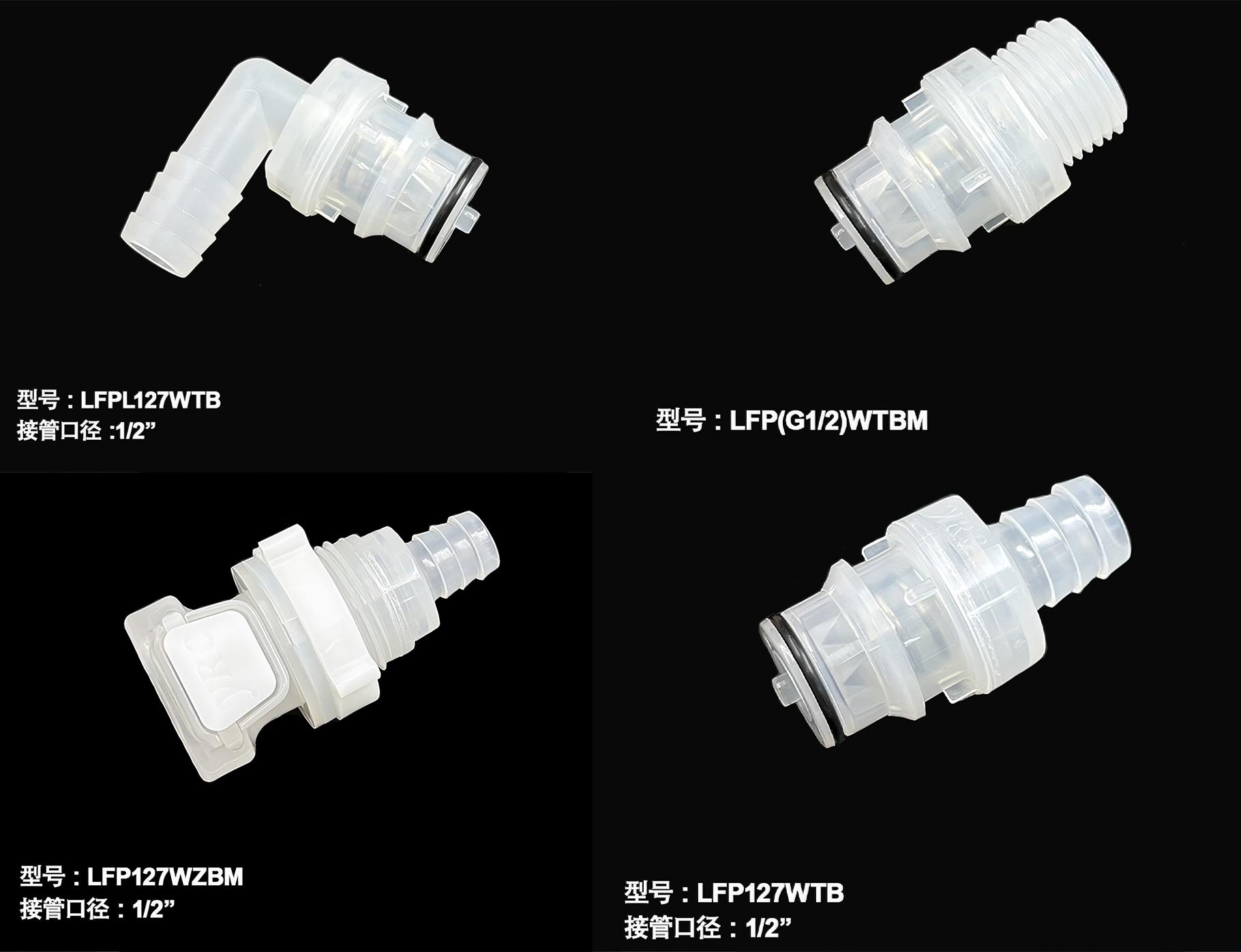

Developed for high‑flow‑rate applications. Most components are made of plastic, featuring light weight and excellent corrosion resistance. Low residual fluid leakage upon disconnection. It is the preferred option for high‑flow industries.

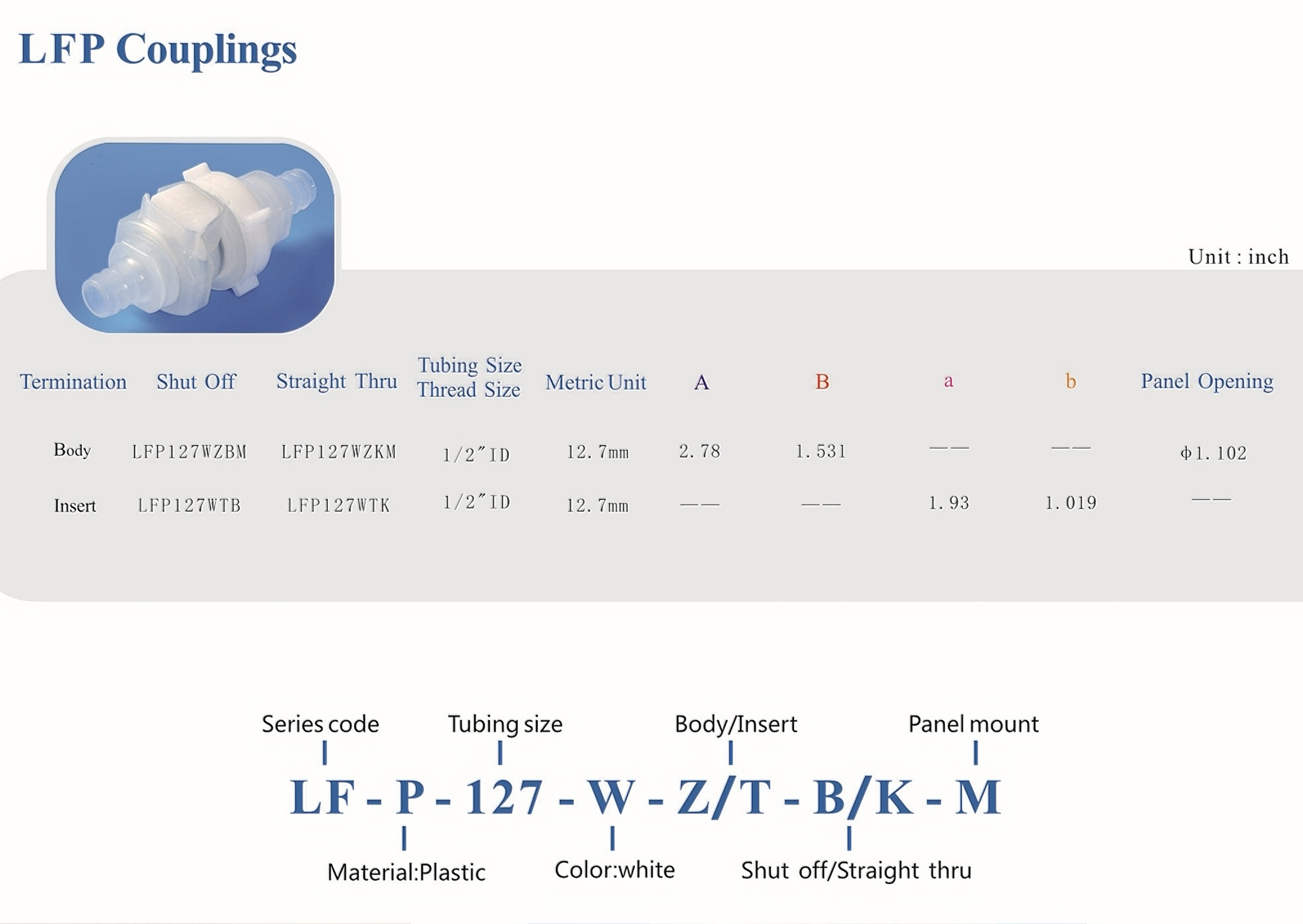

Specifications:

Pressure: Vacuum to 60psi (0.4MPa)

Temperature: 10℃ ~ 90℃

Materials:

Body & Valve Core: PP

Push‑button & Nut: POM

Spring: Stainless steel

O‑ring: EPDM

Inner Diameter: 1/2" ID (12.7mm ID); External thread: 3/8"NPT, G1/2, G3/4

Color: Translucent as standard; other colors available upon custom request.
