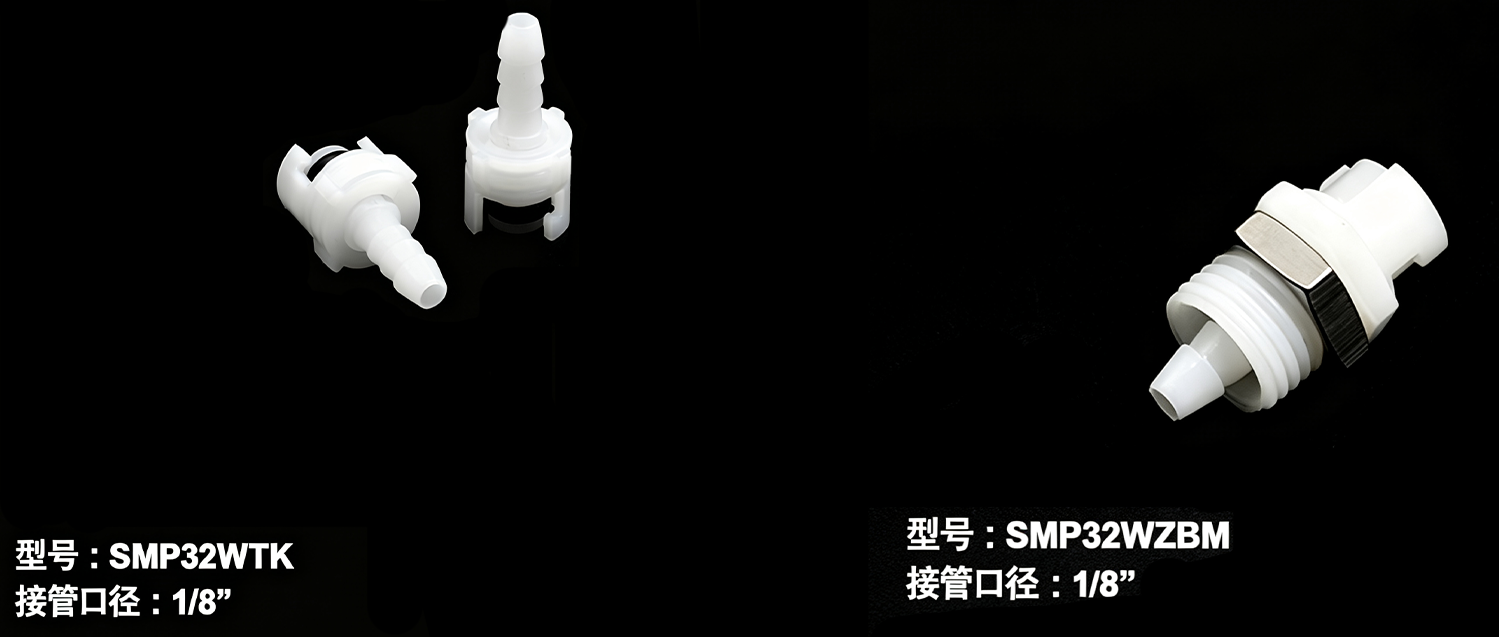

SMP series is the smallest‑size and lowest‑flow connector among YRC products. Its unique rotating‑latch design allows free rotation after connection, preventing hose tangling and accidental disconnection during operation.

Specifications:

Pressure: Vacuum to 100psi (0.6MPa)

Temperature: ‑40℃ ~ 100℃

Materials:

Body & Valve Core: POM

Spring: Stainless steel

O‑ring: NBR

Nut: Chrome‑plated brass

Inner Diameter: 1/16" ~ 1/8" ID (1.6mm ~ 3.2mm ID)

Color: White as standard; other colors available upon custom request.

Customizable body materials: PP, PC, PSU
