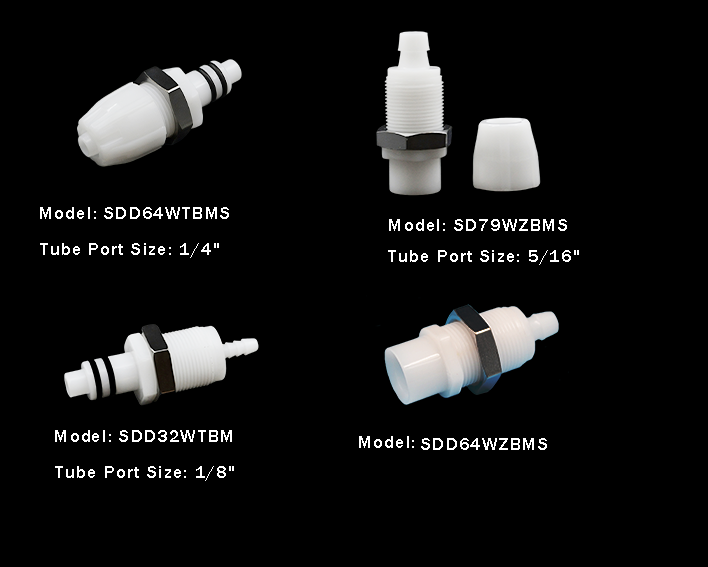

SD series is designed for inside the housing of water‑electric connectors. Unlike traditional quick connectors, it has no push‑button and requires an external interlock structure. This design effectively avoids seal ring abrasion and extends service life of O‑rings. Besides installation inside water‑electric connector housing, it also supports plug‑and‑play, disconnects upon release.

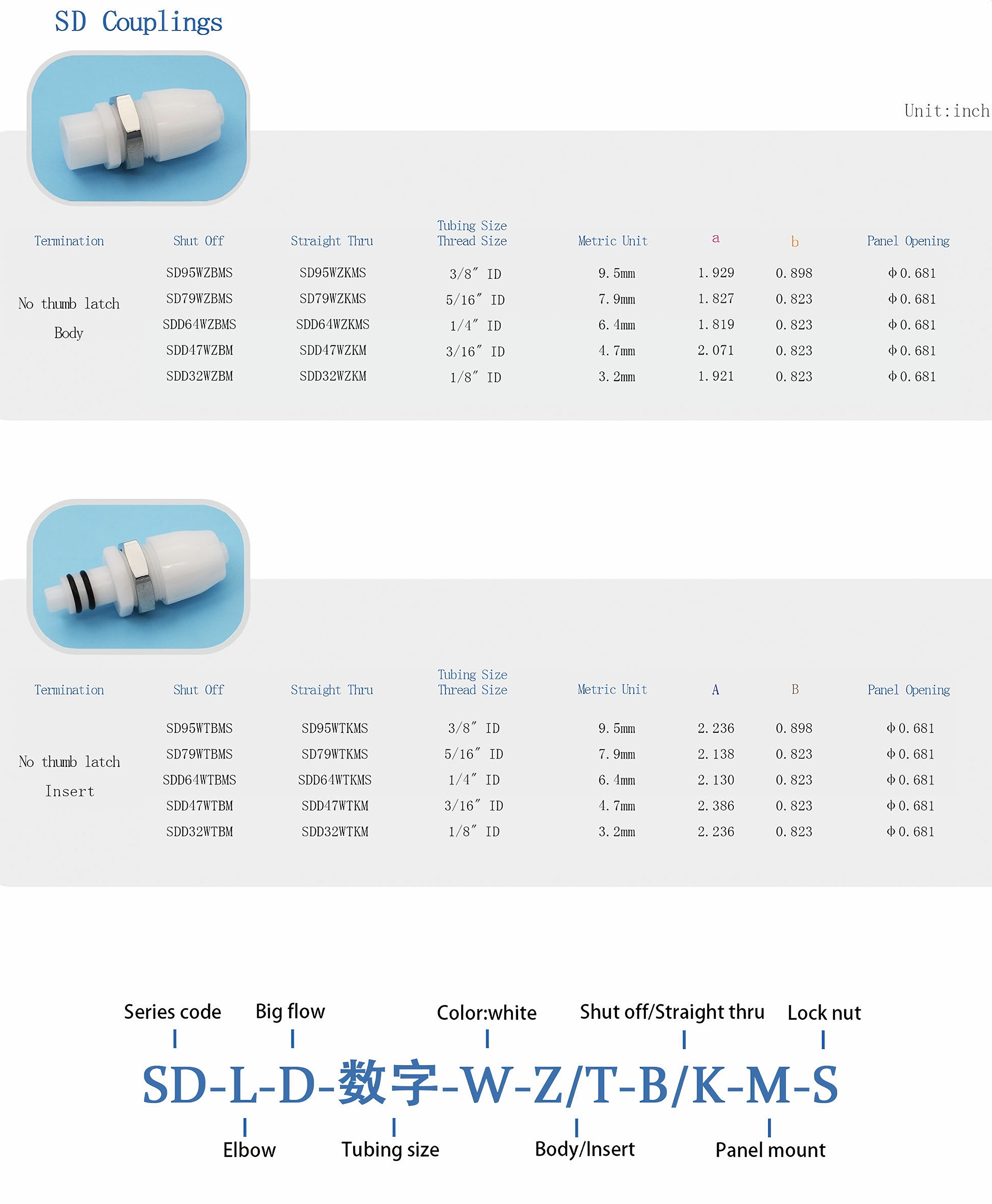

Specifications

Pressure: Vacuum to 120psi, 0.8MPa

Temperature: ‑40℃ ~ 100℃

Materials:

Main Body & Lock Nut: POM

Spring: Stainless Steel

O‑ring: EPDM

Port Size: 1/8" ~ 3/8" ID (3.2mm ~ 9.5mm ID)

Color: White as standard color, custom colors available
