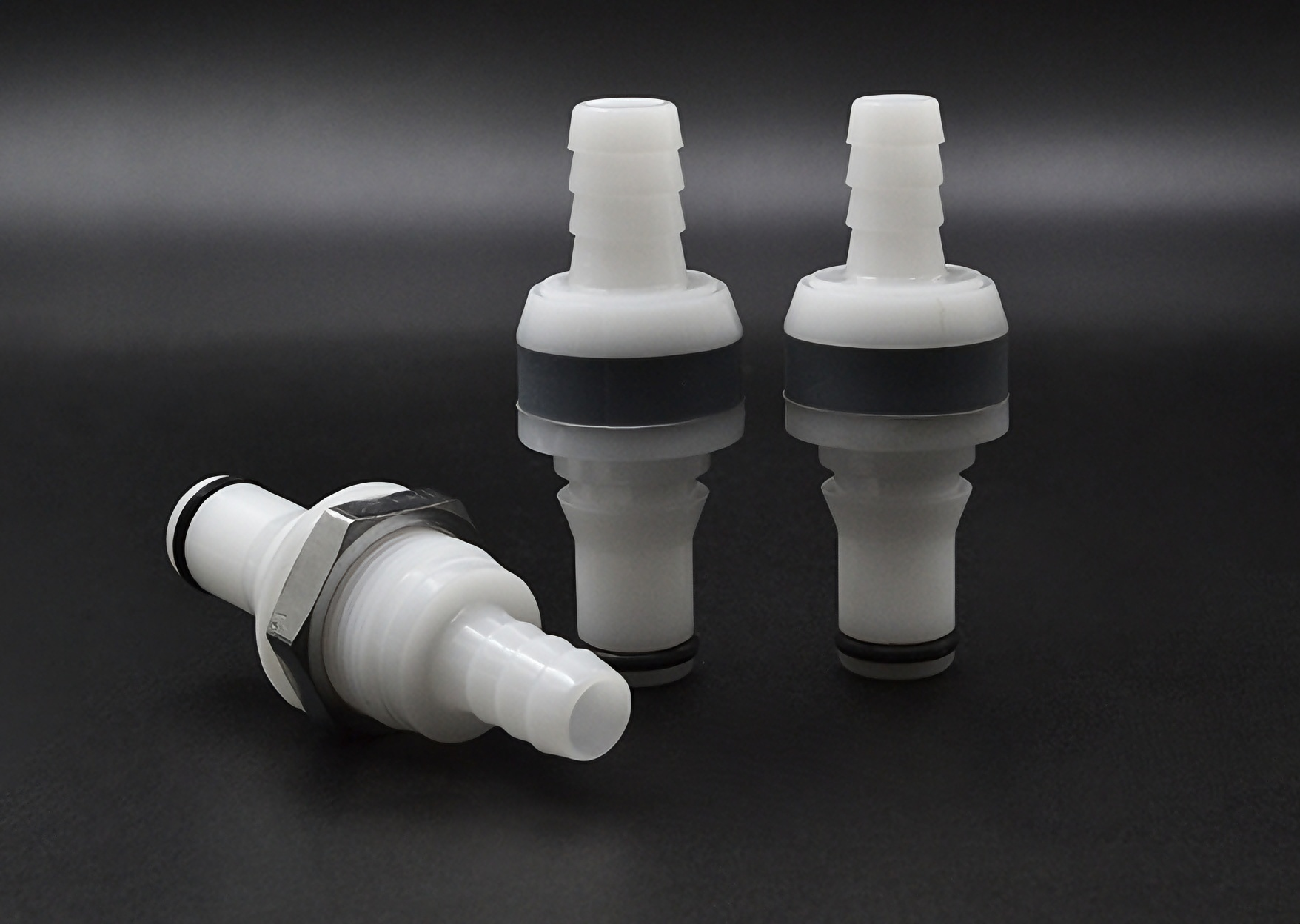

The KCP series features a high‑performance annular retaining ring inside. It locks with simple insertion and disconnects under moderate pulling force. It can also automatically disconnect when system pressure exceeds limit to protect equipment. Built‑in shut‑off valves on both ends after disconnection to minimize loss of expensive fluids.

Specifications

Pressure：Vacuum to 60 psi，＜0.4 MPa

Temperature：‑15℃ ~ 60℃

Materials：

Body：POM (Polyoxymethylene)

Spring：Stainless steel

O‑ring：EPDM

Retaining ring：PPS (Polyphenylene Sulfide)

Port Size：1/8" ~ 3/8" ID（3.2 mm ~ 9.5 mm ID）

Color：White and grey as standard; custom colors available.
