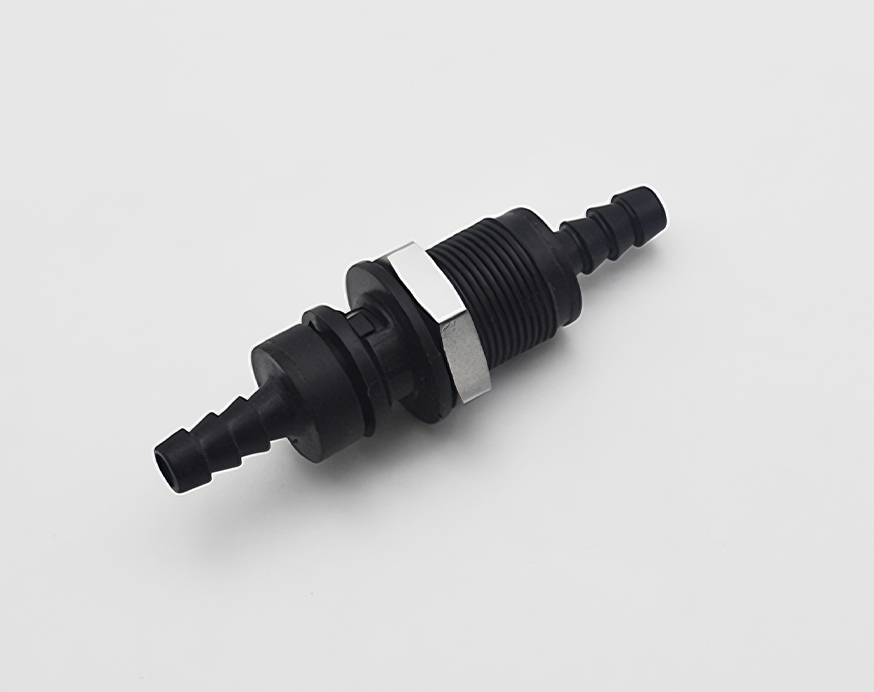

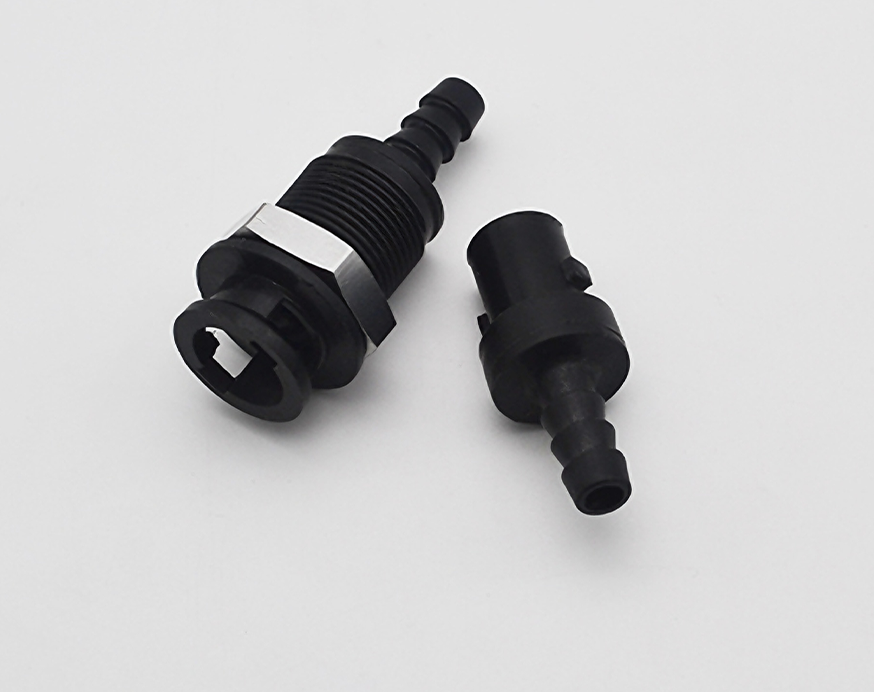

NL series is twist‑type quick connector. Its internal sealing structure achieves nearly zero residual liquid flow upon disconnection to prevent corrosion caused by spillage. With chemical‑resistant material, it fits printing ink handling, chemical transfer, medical waste‑liquid transportation and other industries.

Specifications:

Pressure: Vacuum to 45psi (0.3MPa)

Temperature: 10℃ ~ 55℃

Materials:

Body & Valve core: Glass‑fiber reinforced polypropylene (PP‑GF)

Spring: Stainless steel

Seals: TPV

Port Size: 1/4"~3/8" ID (6.4mm~9.5mm ID)

Color: Grey as standard; custom colors available

Leakage: ＜0.02 ml
