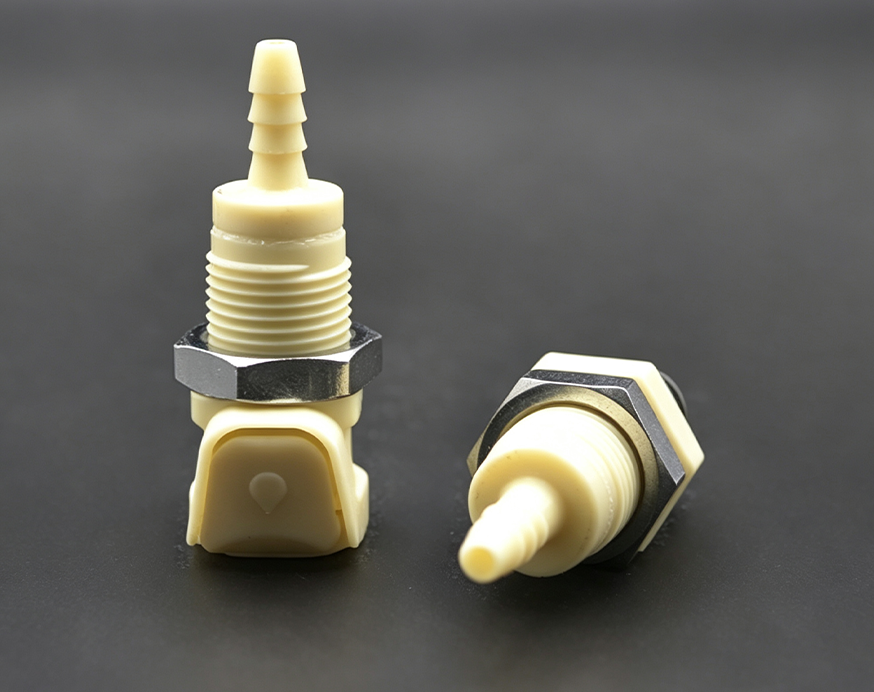

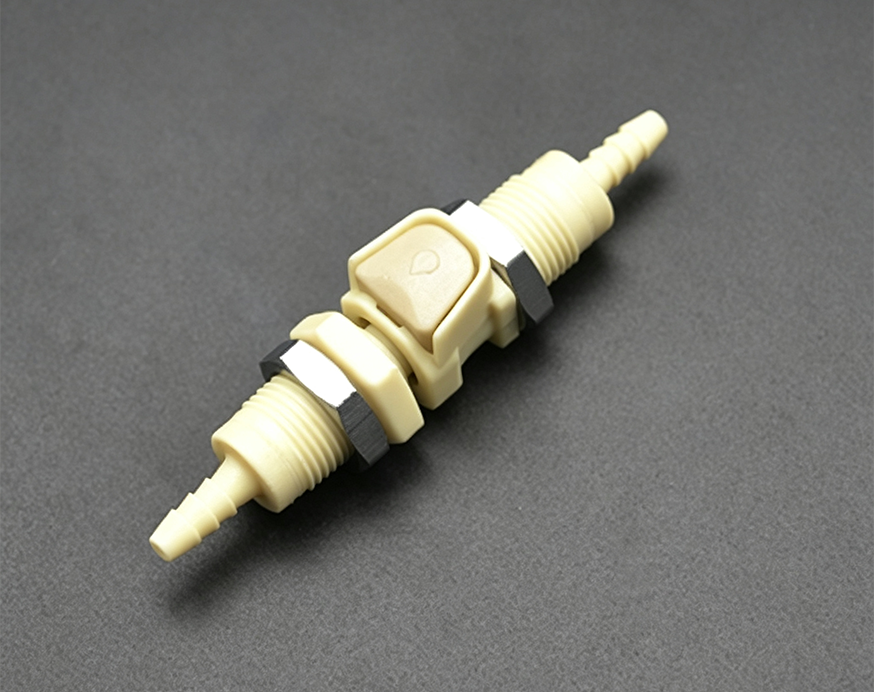

ML series is small‑bore leak‑free quick connector. Its internal sealing structure keeps minimal residual fluid on surface without dripping after disconnection, reducing environmental pollution caused by liquid spillage.

Specifications:

Pressure: Vacuum to 22psi (0.15MPa)

Temperature: 10℃ ~ 55℃

Materials:

Body: Polypropylene (PP)

Button & Valve core: PPS

Spring: Stainless steel

Seals: EPDM

Port Size: 1/8"~1/4" ID (3.2mm~6.4mm ID)

Color: Yellow as standard; custom colors available

Leakage: ＜0.04 ml
