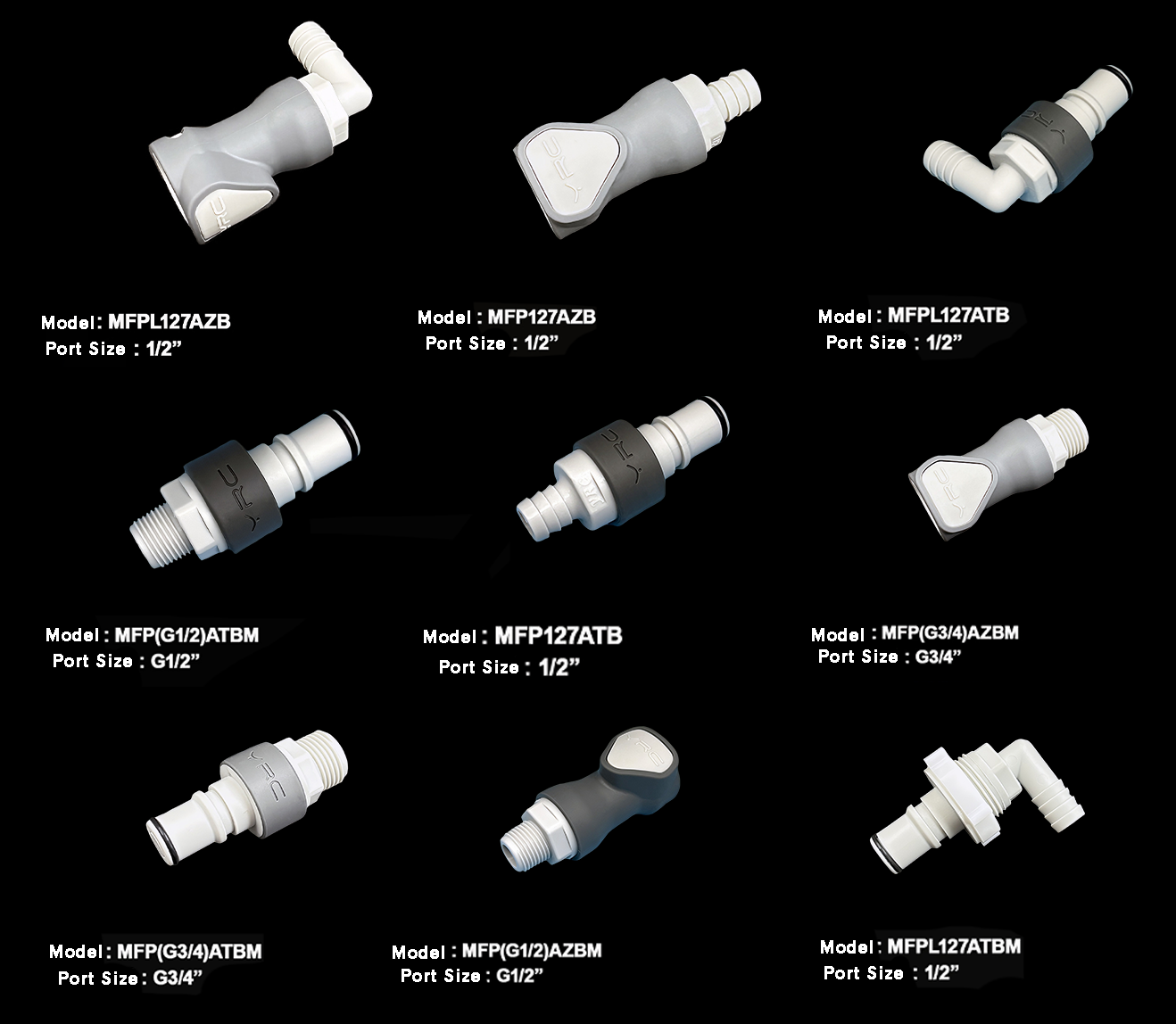

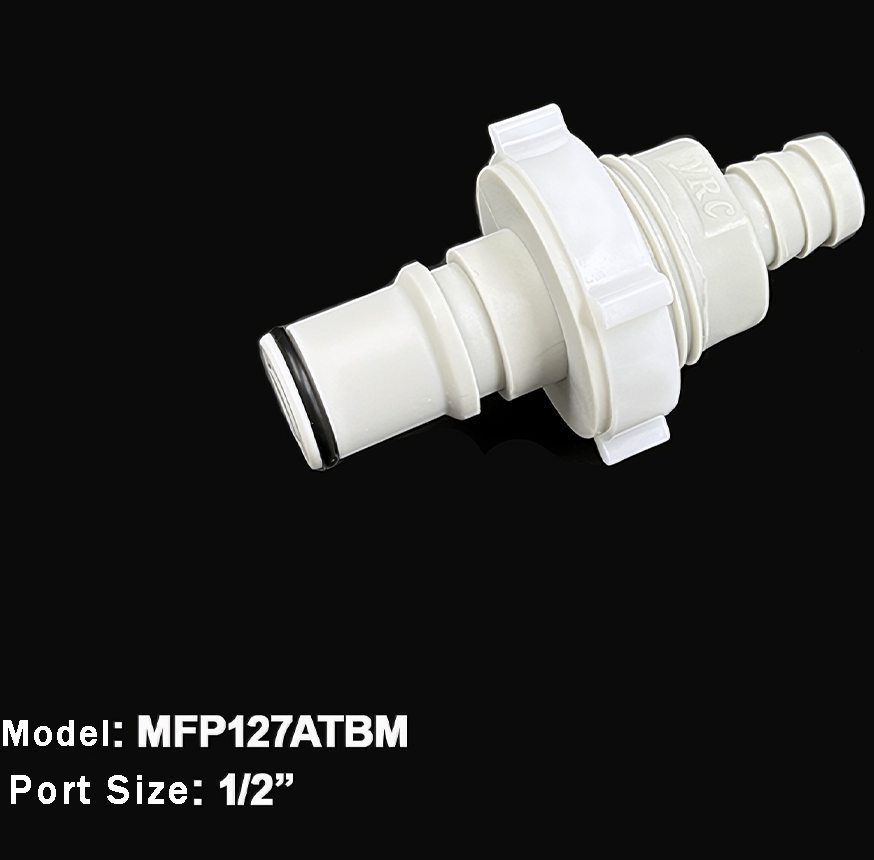

MFP is a large‑diameter leak‑free connector with overmolded soft‑grip surface made by two‑color injection molding. Custom colors are available for the soft overmold to enhance visual texture. Thanks to its internal sealing structure, only minimal residual fluid remains on the surface upon disconnection with no dripping, reducing environmental contamination caused by liquid leakage.

Specifications:

Pressure: Vacuum to 120psi (0.8 MPa)

Temperature: 0℃ ~ 80℃

Materials:

Body & Button: Glass‑fiber reinforced polypropylene (PP‑GF)

Overmold: Thermoplastic Elastomer (TPE)

Spring: Stainless steel

Seals: EPDM

Port Size: 1/2" ID (12.7mm ID); External thread 3/8"NPT; G1/2; G3/4

Color: Grey as standard; custom colors available

Leakage: ＜0.04 ml
