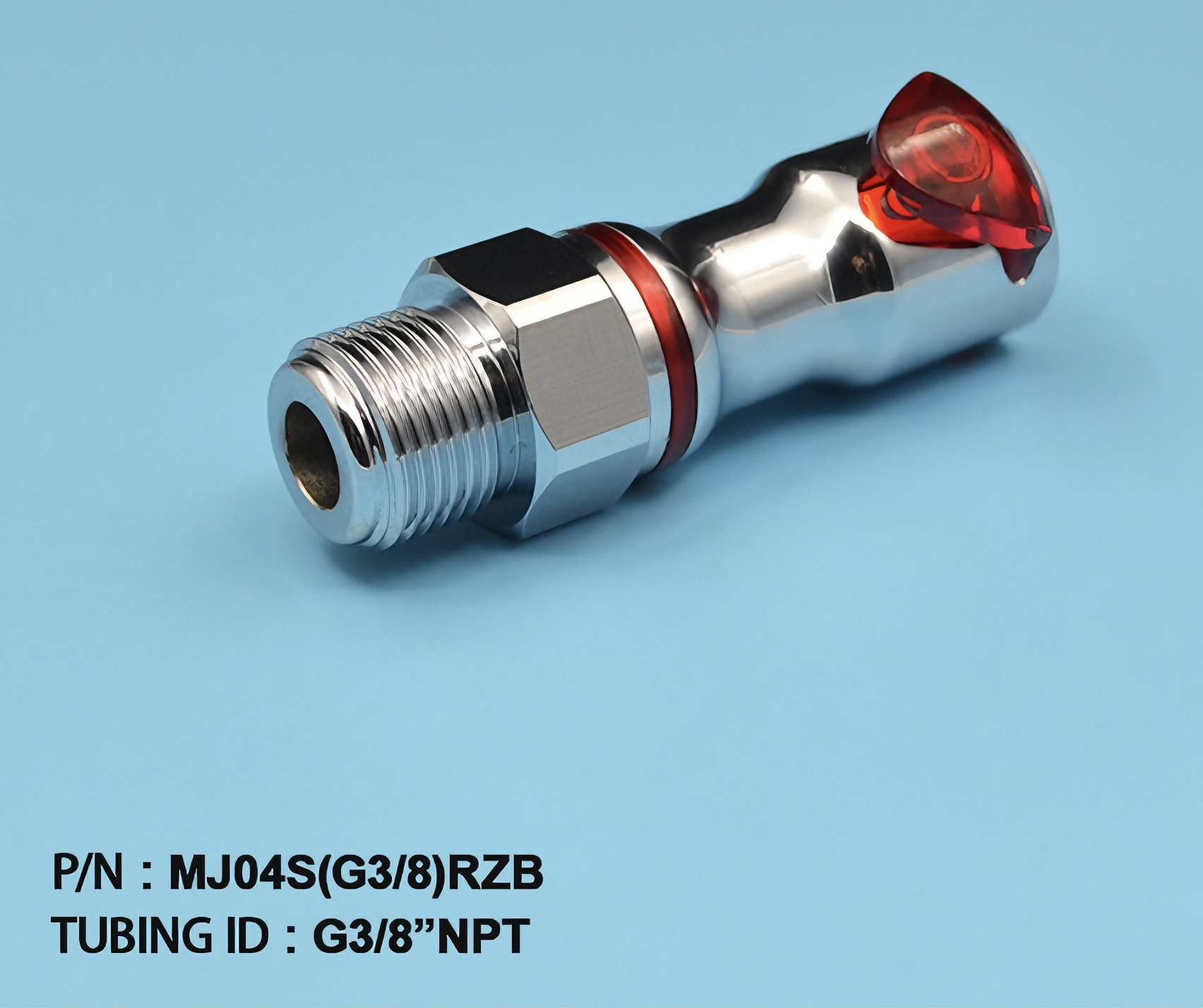

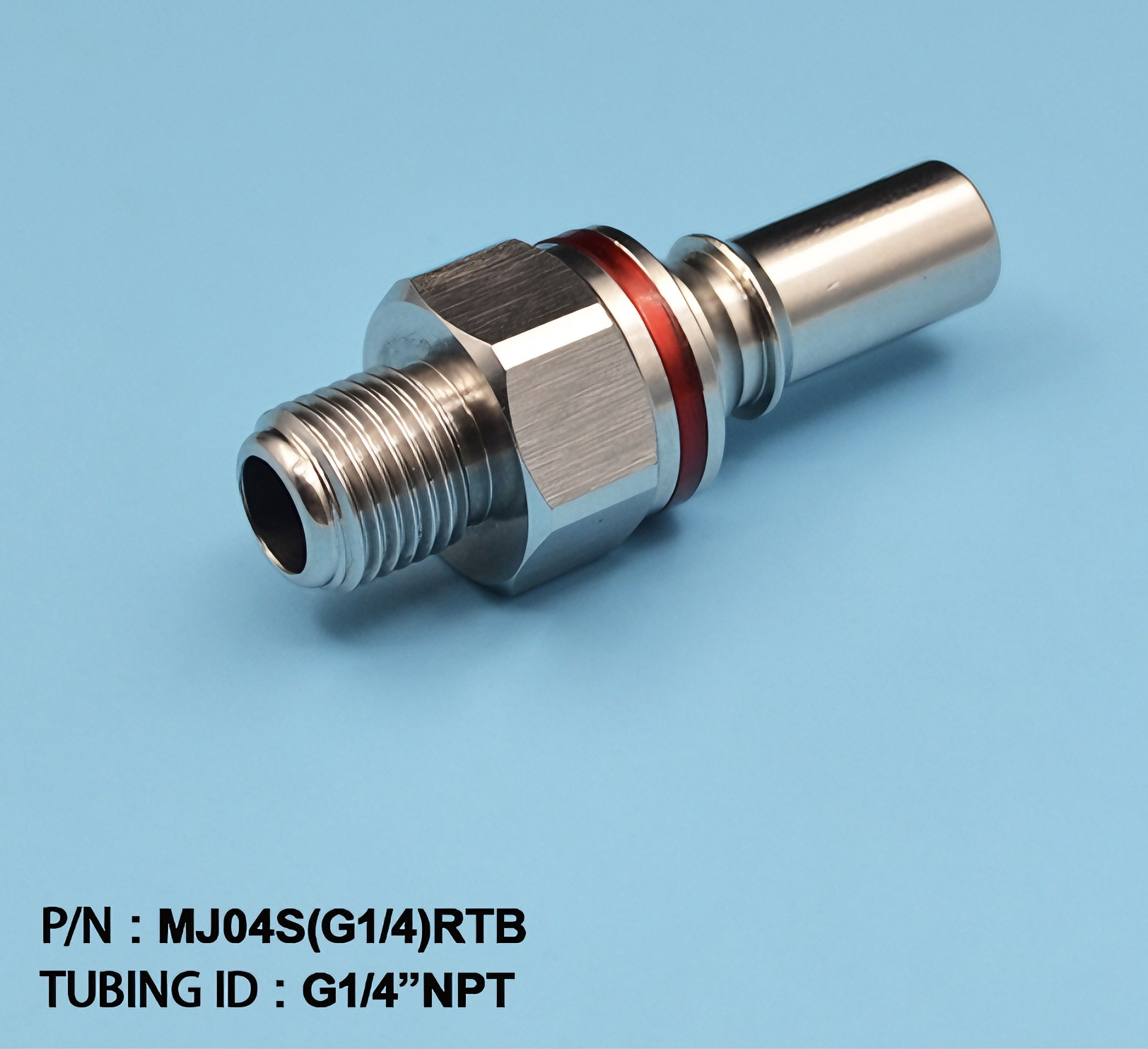

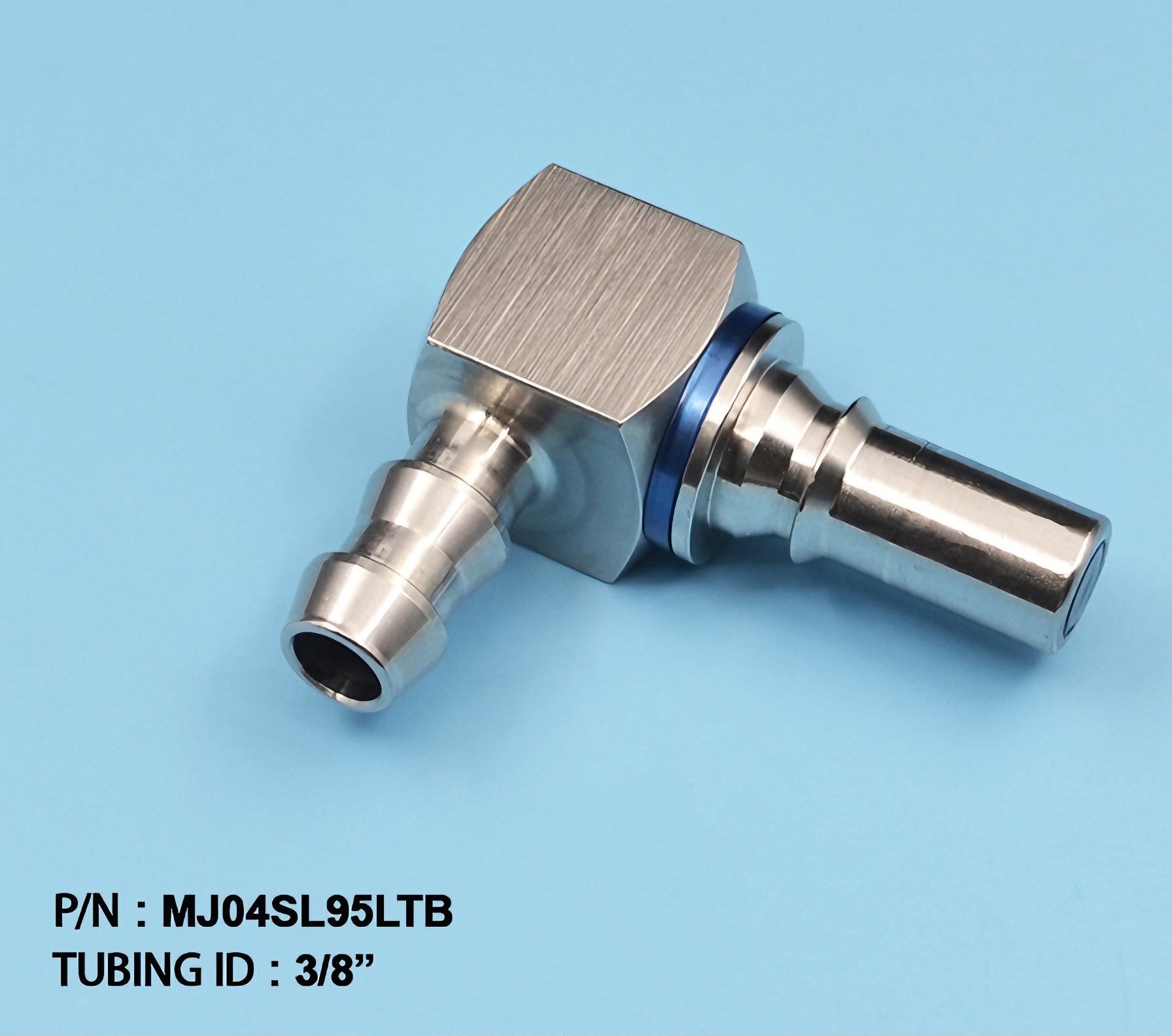

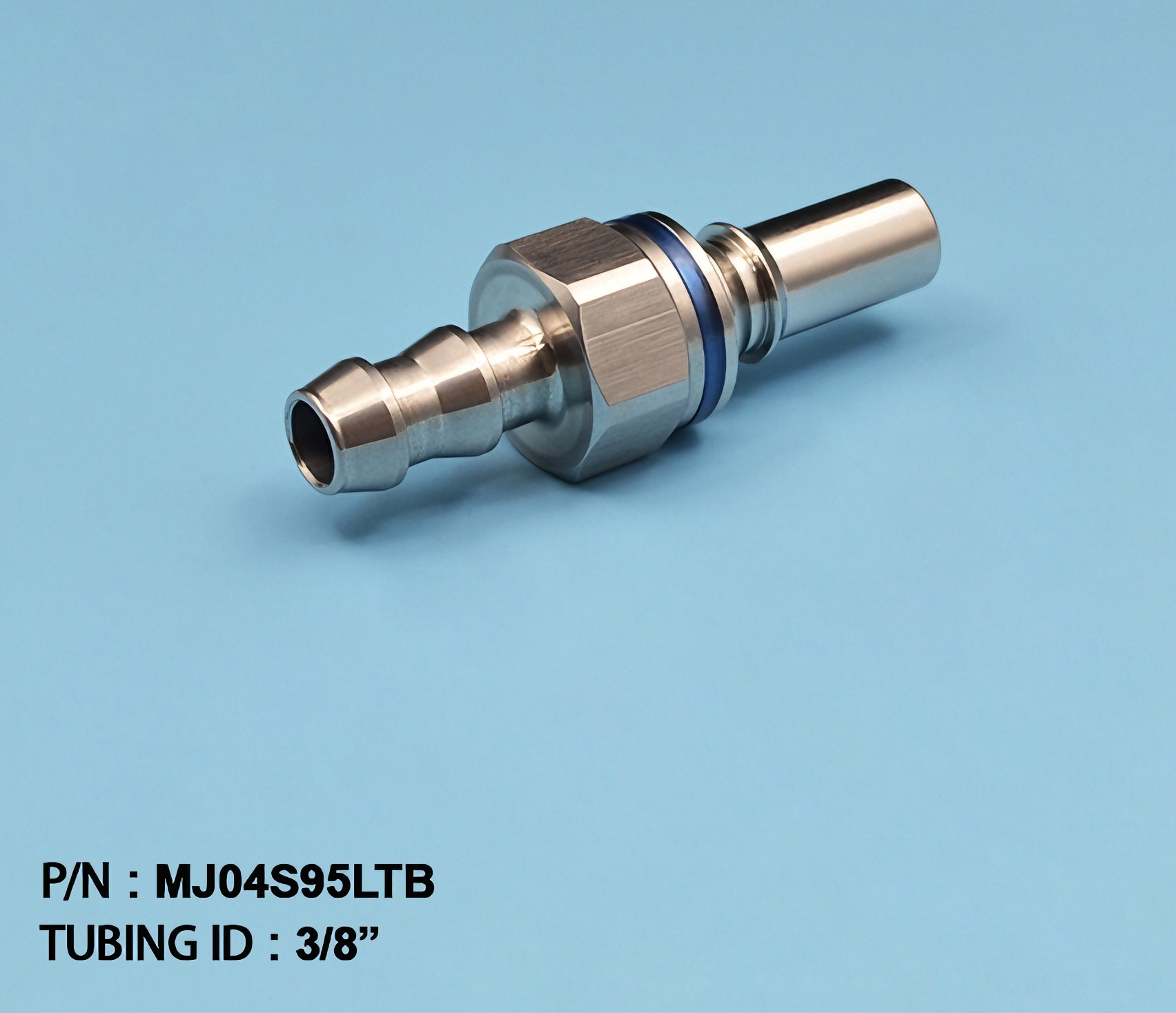

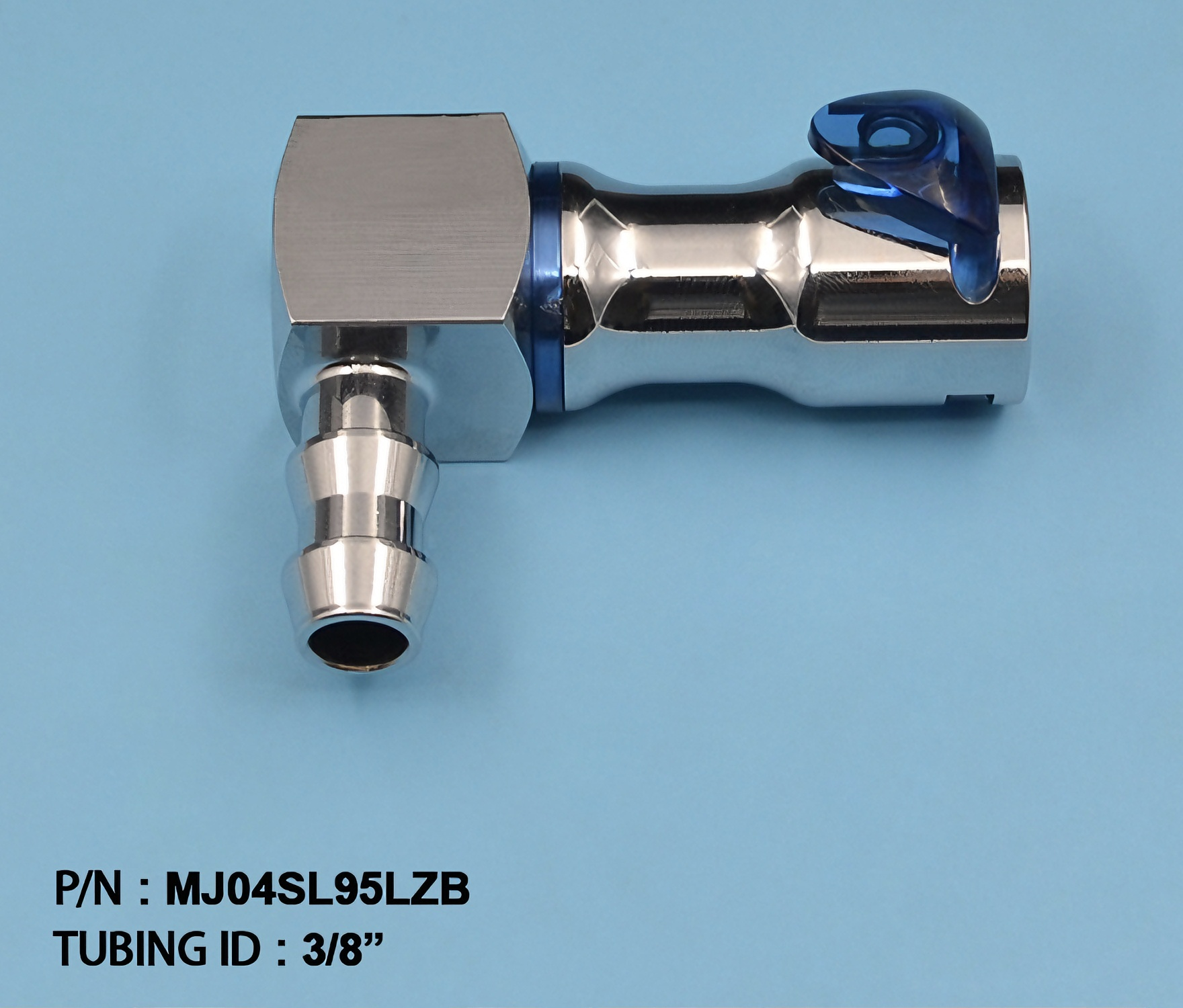

MJ04 series is metal‑made leak‑free quick connector. Locking button secures male and female ends. The nozzle allows 360° axial rotation without leakage, and the button can be adjusted for convenient one‑hand operation. Red‑blue color coding distinguishes male/female couplings for clear fluid‑direction identification. Widely applied in server liquid cooling systems.

Specifications:

Pressure: Vacuum to 145psi (1MPa)

Temperature: ‑40℃ ~ 200℃

Materials:

Body: Chrome‑plated copper alloy

Valve core & Button: Polysulfone (PSF)

Spring & Retaining ring: Stainless steel

O‑ring: FKM

Port Size: 3/8" ID (9.5mm ID); External thread G1/4; G3/8

Color: Bright silver

Custom body material available: Passivated stainless steel
