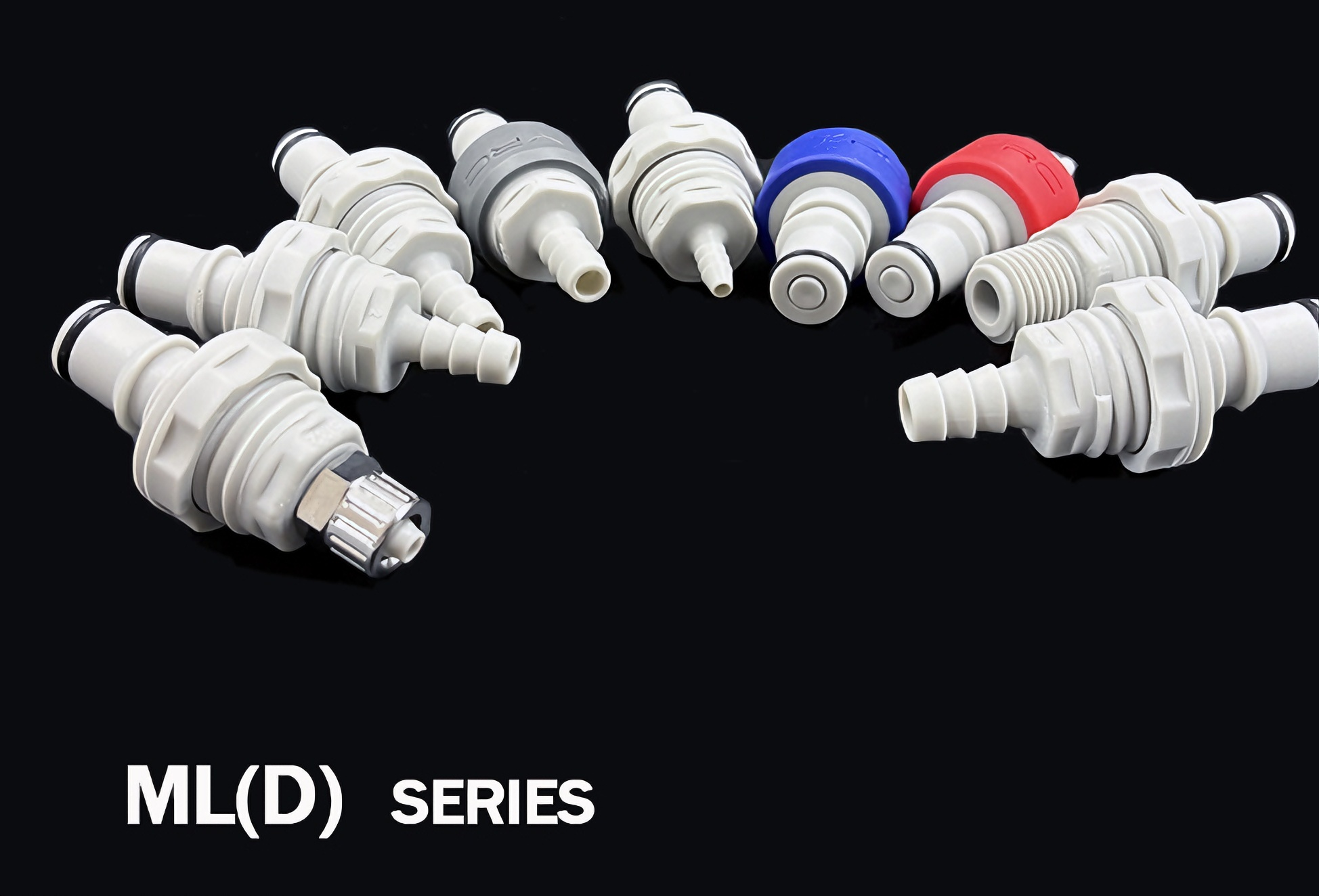

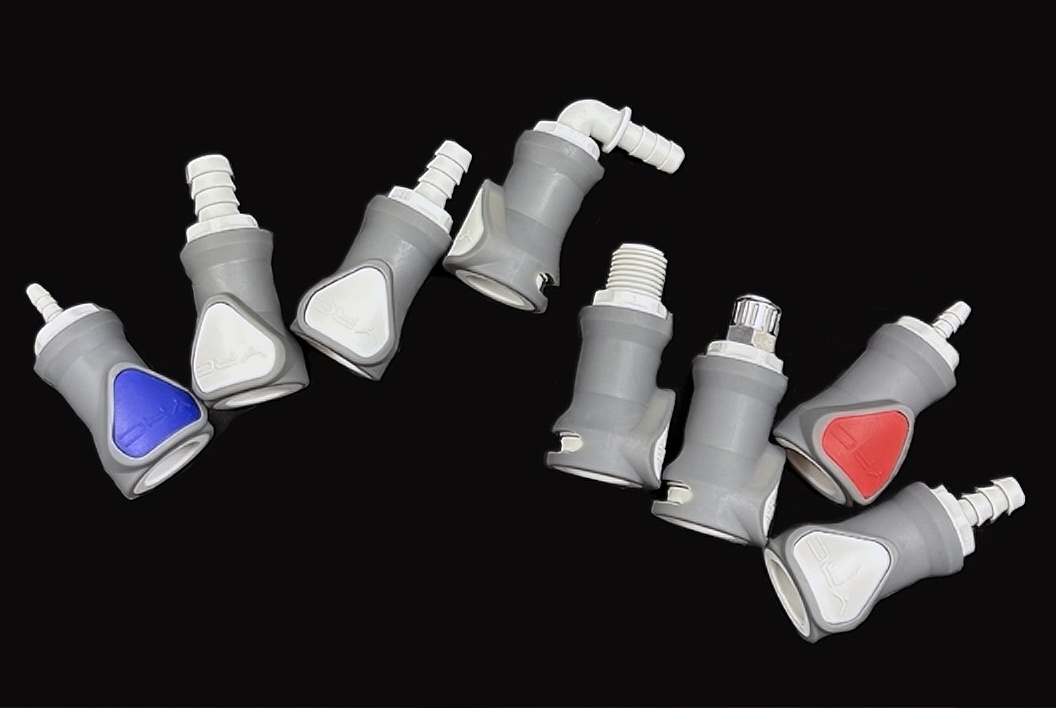

ML(D) series is large‑size leak‑free quick connector with two‑color overmolded soft‑grip surface. Custom colors for overmold are available for better texture. Its internal sealing structure leaves only tiny residual fluid on surface without dripping upon disconnection, lowering environmental pollution caused by liquid spillage.

Specifications:

Pressure: Vacuum to 120psi (0.8MPa)

Temperature: 0℃ ~ 80℃

Materials:

Body & Button: Glass‑fiber reinforced polypropylene (PP‑GF)

Overmold: Thermoplastic Elastomer (TPE)

Spring: Stainless steel

Seals: EPDM

Port Size: 1/8"~3/8" ID (3.2mm~9.5mm ID)

Color: Grey as standard; custom colors available

Leakage: ＜0.04 ml
