Product Information

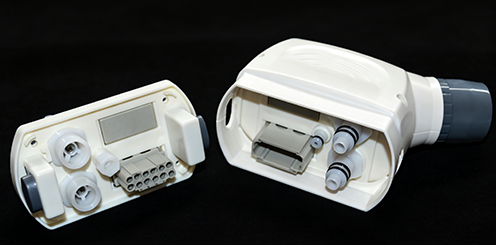

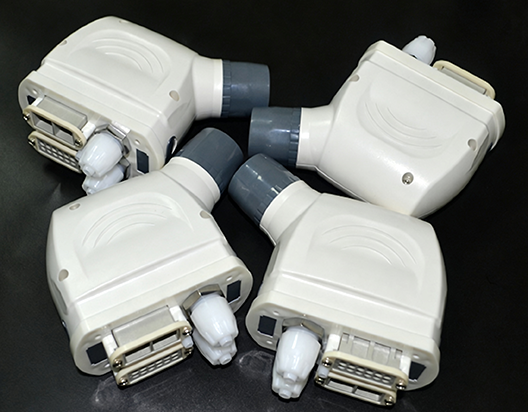

- Name: SD‑3S
- Category: Hybird connector
SD‑3S
Pressure: Vacuum to 120psi, 0.8MPa
Temperature: ‑10℃ ~ 80℃
Materials:
Main Housing: ABS
Inner Plate: Flame‑retardant ABS for electrical application
Spring: Stainless Steel
Fluid Channel: POM
Electrical Component: Reinforced flame‑retardant PC
Gas Channel: POM
O‑ring: EPDM ‑ Electrical Contacts: Silver‑plated Brass
Port Size: 1/8" ~ 3/8" ID (3.2mm ~ 9.5mm ID)
Color: White as standard housing color
High‑voltage Module Options: HC002A(40A), HC002SA(40A), HC003A(40A), HC002PA(80A)
Low‑voltage Module Options: LC017A(10A), LC012A(10A), LC008A(16A)
