Product Information
- Name: 3‑Pin Electrical Connector（HC003A）
- Category: Industrial connectors

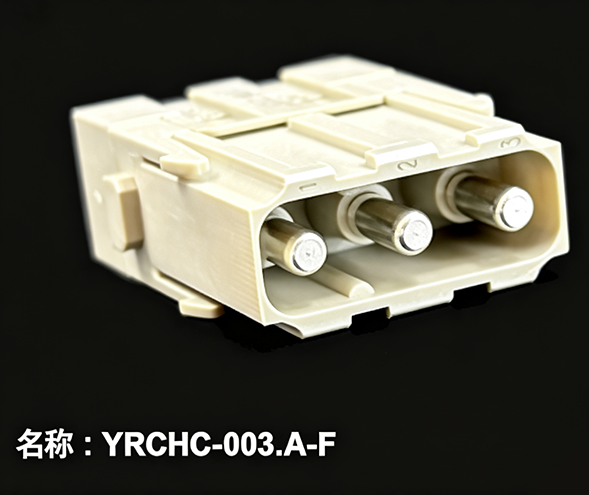

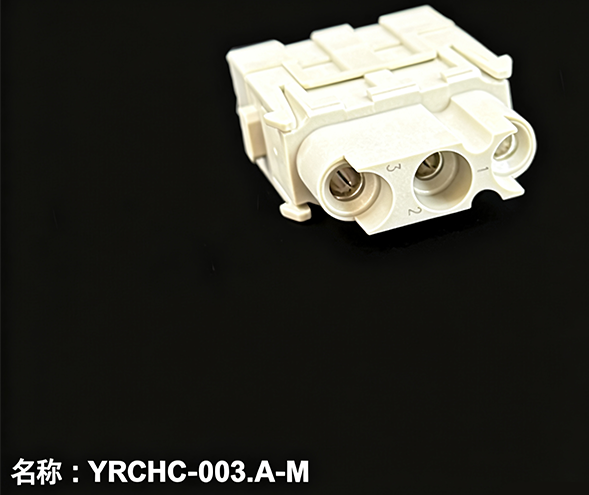

3‑Pin Electrical Connector（HC003A）
Specifications
Standard: DIN EN 61984
Certifications: CE, ROHS, UL
Pin Count: 3
Rated Current: 40A
Rated Voltage: 680V
Rated Impulse Voltage: 8kV
Industrial Pollution Degree: 3
Insulation Resistance: ≥10¹⁰ Ω
Housing Material: Polycarbonate (PC)
Contact Material: Silver‑Plated Copper Alloy, Gold‑Plated Copper Alloy
Operating Temperature: ‑40℃ ~ 120℃
Flame‑Retardant Rating: V0
Wire Size: 1.5mm²‑10mm²
Termination: Crimping or Soldering
