Product Information
- Name: 8‑Pin Electrical Connector（LC008A）
- Category: Industrial connectors

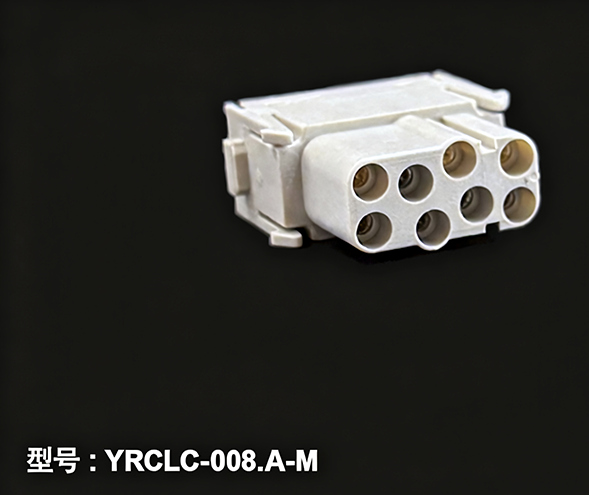

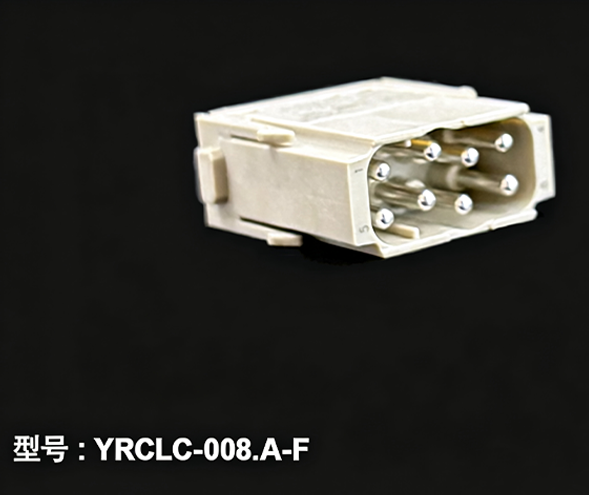

8‑Pin Electrical Connector（LC008A）
Specifications
Standard: DIN EN 61984
Certifications: CE, ROHS, UL
Max Pin Count: 8
Rated Current: 16A
Rated Voltage: 400V
Rated Impulse Voltage: 6kV
Industrial Pollution Degree: 3
Insulation Resistance: ≥10¹⁰ Ω
Housing Material: Polycarbonate (PC)
Contact Material: Silver‑Plated Copper Alloy, Gold‑Plated Copper Alloy
Operating Temperature: ‑40℃ ~ 120℃
Flame‑Retardant Rating: V0
Wire Size: 0.75mm²‑2.5mm²
Termination: Crimping or Soldering
