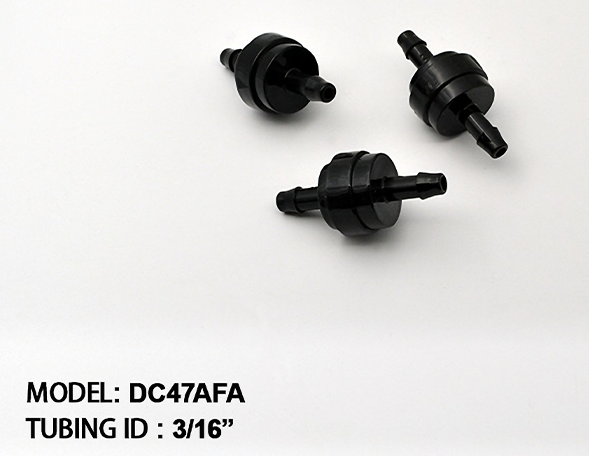

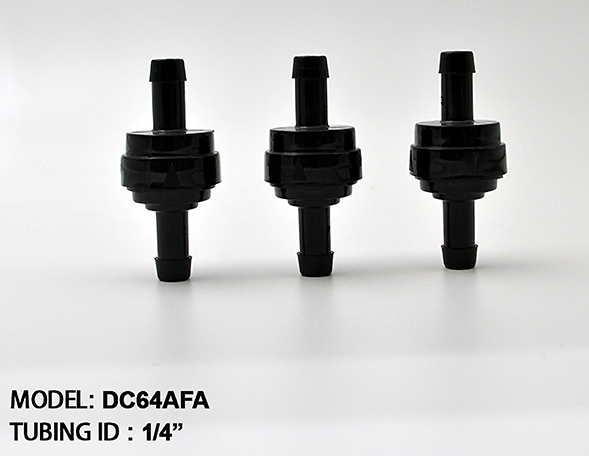

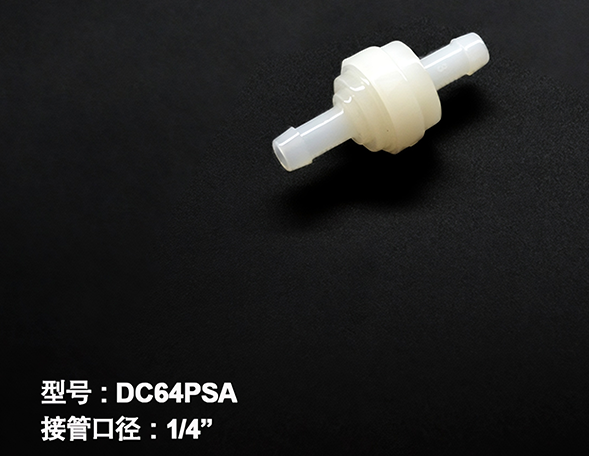

DC series, also known as fuel check valve, is widely applied in fuel machinery and agricultural equipment, such as automobiles, motorcycles, pesticide spraying devices and various disinfection‑related equipment. The cracking force can be customized upon request.

Specifications

Housing Material: Nylon (PA66), Glass‑fiber reinforced Nylon (PA66 GF30%), POM, POK

Seal Material: FKM, SIL (Silicone), EPDM

Spring Material: Stainless Steel

Port Size: 1/8" ~ 5/16"

Cracking Pressure: 1‑20 kPa

Back Pressure: 1‑300 kPa

Color: Black as standard, other colors available for customization.
